Mold builds and 50T–1200T injection molding.
Steel and composite molds machined in-house on Makino and Mikron CNCs, Sodick wire EDM, and Agie-Charmilles precision EDM — then molded on a 35-press fleet from 50T to 1200T.

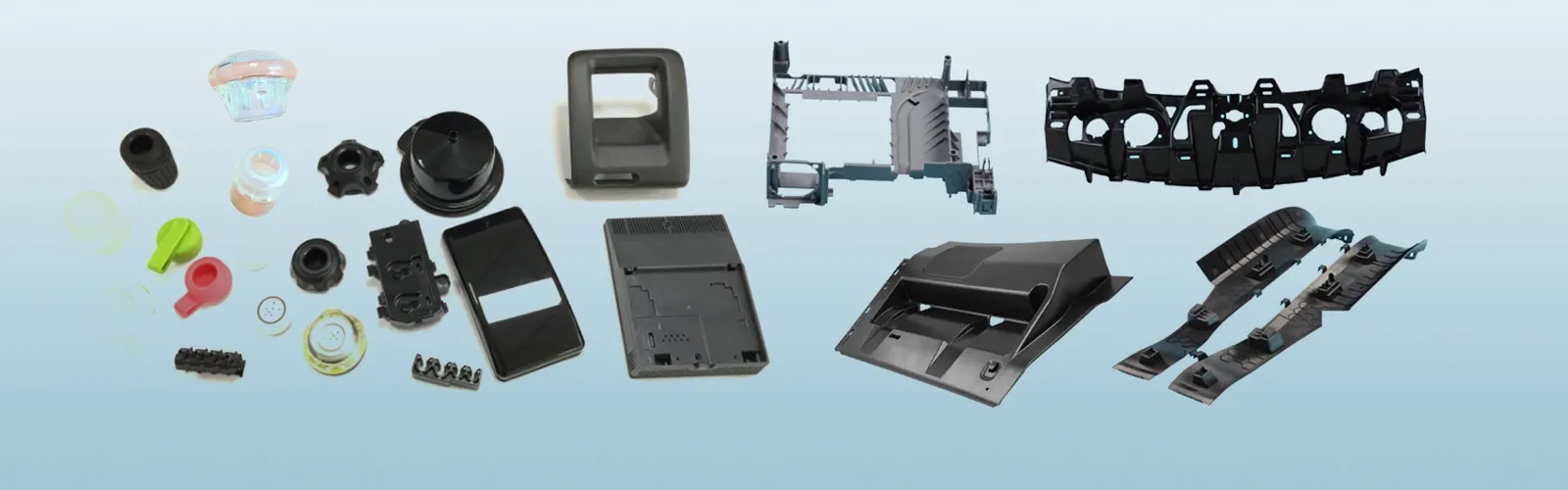

Cosmetic housings, automotive trim, and structural polymer parts.
Multi-channel hot runner tooling, servo-driven demolding, and inline visual QA for parts that ship straight to your assembly line.
1,200T
Flagship in-house press
±0.01 mm
10 µm dimensional control on critical features
35
In-house presses, 50T–1200T
50–70
Production molds built per month
Estimate clamp tonnage and cooling time.
Set projected surface area, wall thickness, and resin. We'll suggest a press from our active fleet and a rough cooling cycle. Final routing always comes from an engineer review.
101 Tons
Forces needed to resist injection deflection
0.5% - 0.7%
Volumetric shrinkage compensation index
The PLAM Advantage
By consolidating tooling blueprint fabrication, high-tonnage synthesis, and secondary surface finishing inside a single plant, we eliminate hand-off errors.
Precision Mold Production
Our tooling cell designs, machines, and spot-checks custom steel and composite molds. Tolerances down to ±0.005mm prevent parting line flash.
High-Capacity Injection Molding
Continuous 24/7 automated injection molding on the in-house press fleet. Multi-axis robot pick-and-place units optimize cycle times.
Post-Process & Component Assembly
Chemical passivation wash, decorative graphic silk printing, electrostatic multi-alloy bonding, and mechanical assembly for complete modules.
Injection press fleet
35 in-house presses plus partnered high-tonnage stations
- 1200TIn-House
- Shot
- 4,200g
- Tie bar
- 1250 × 1250 mm
- Robotics
- 1 unit
- 780TIn-House
- Shot
- 2,400g
- Tie bar
- 980 × 980 mm
- Robotics
- 1 unit
- 530TIn-House
- Shot
- 1,800g
- Tie bar
- 820 × 820 mm
- Robotics
- 2 units
- 400TIn-House
- Shot
- 1,150g
- Tie bar
- 720 × 720 mm
- Robotics
- 2 units
- 268T-300TIn-House
- Shot
- 680g
- Tie bar
- 600 × 600 mm
- Robotics
- 2 units
- 110T-218TIn-House
- Shot
- 120g-500g
- Tie bar
- 420 × 420 mm
- Robotics
- 14 units
- 50T-90TIn-House
- Shot
- 40g-110g
- Tie bar
- 320 × 320 mm
- Robotics
- 12 units
- DC600Outside
- Shot
- 1,800g
- Tie bar
- 850 × 850 mm
- Robotics
- 1 unit
- DC750Outside
- Shot
- 2,400g
- Tie bar
- 950 × 950 mm
- Robotics
- 1 unit
- DC1250Outside
- Shot
- 3,800g
- Tie bar
- 1100 × 1100 mm
- Robotics
- 1 unit
| Tonnage | Location | Shot (ABS) | Tie bar | Robotics |
|---|---|---|---|---|
| 1200T | In-House | 4,200g | 1250 × 1250 mm | 1 unit |
| 780T | In-House | 2,400g | 980 × 980 mm | 1 unit |
| 530T | In-House | 1,800g | 820 × 820 mm | 2 units |
| 400T | In-House | 1,150g | 720 × 720 mm | 2 units |
| 268T-300T | In-House | 680g | 600 × 600 mm | 2 units |
| 110T-218T | In-House | 120g-500g | 420 × 420 mm | 14 units |
| 50T-90T | In-House | 40g-110g | 320 × 320 mm | 12 units |
| DC600 | Outside | 1,800g | 850 × 850 mm | 1 unit |
| DC750 | Outside | 2,400g | 950 × 950 mm | 1 unit |
| DC1250 | Outside | 3,800g | 1100 × 1100 mm | 1 unit |
Equipment & machinery
In-house tool shop — 90 staff producing 50–70 molds per month

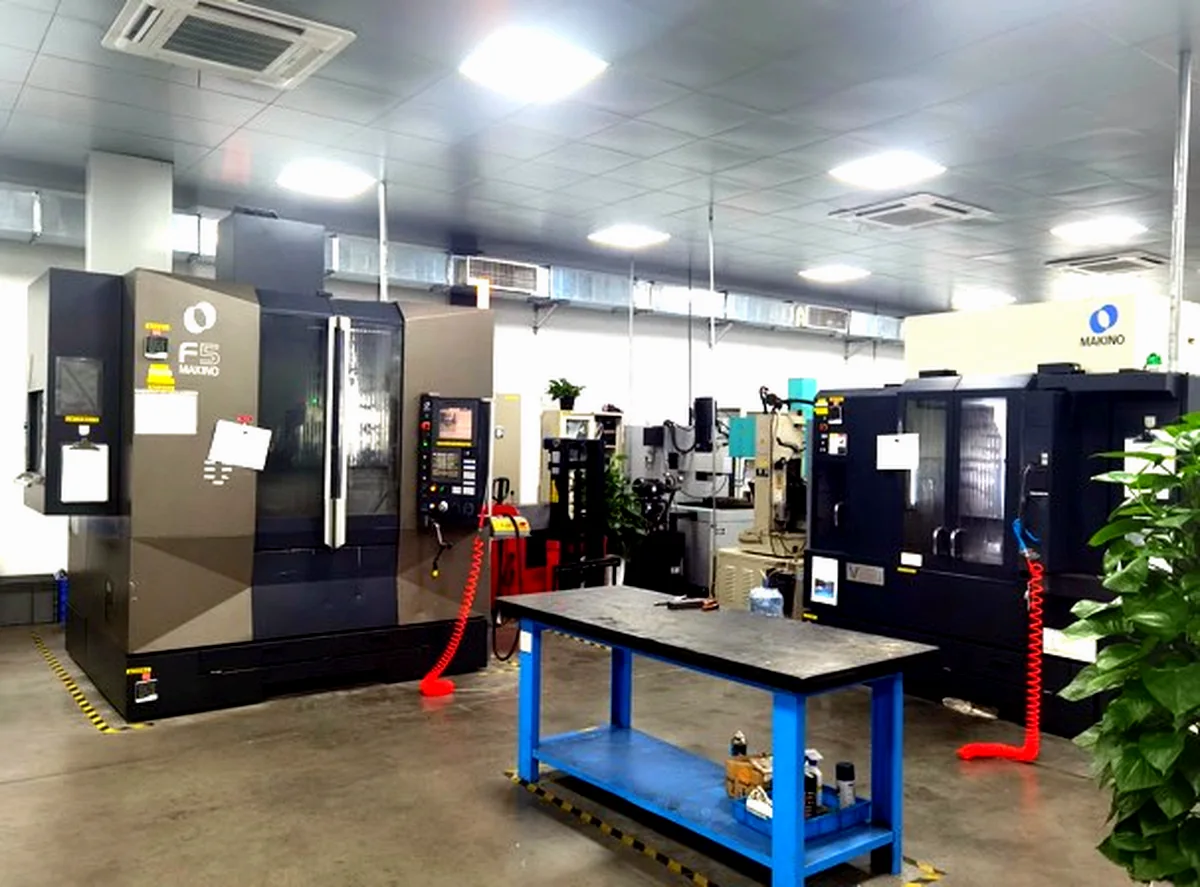

- CNC machining centers (Makino, Mikron)

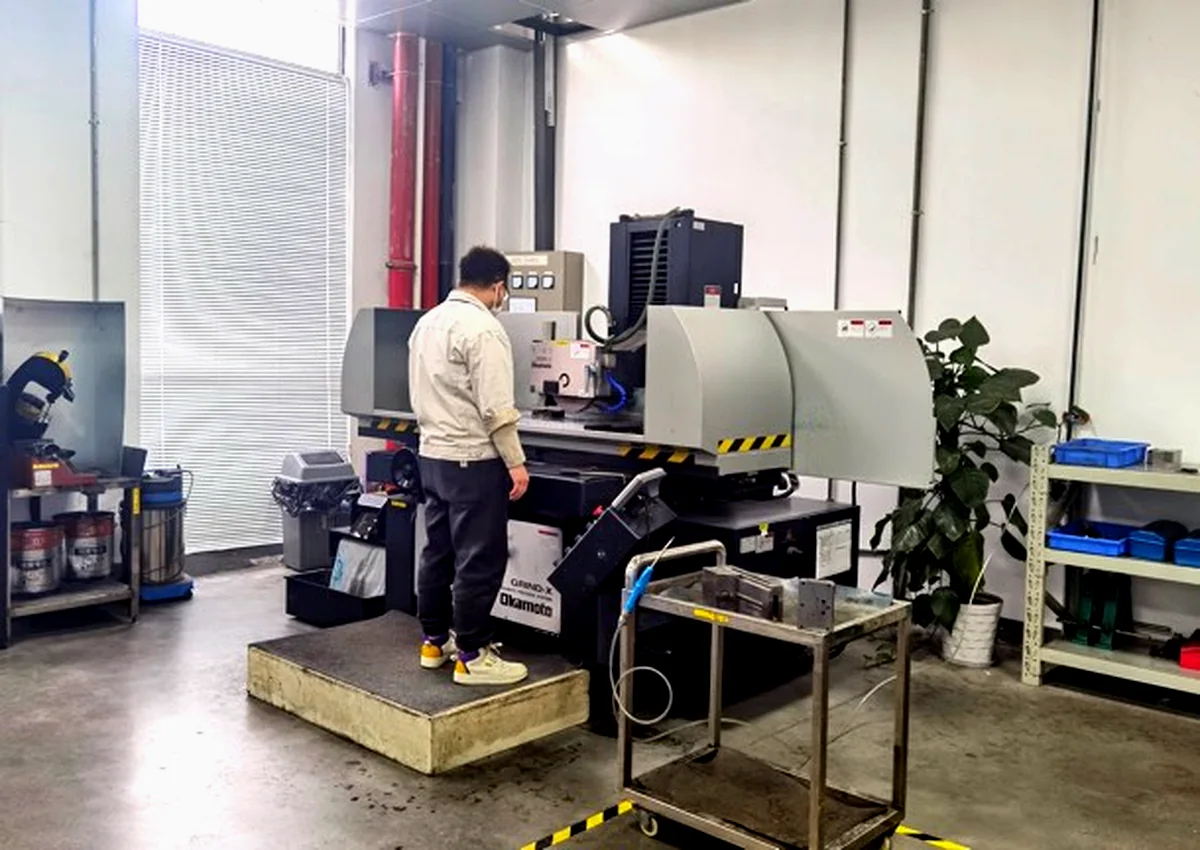

- Sodick wire-EDM & Agie-Charmilles EDM
- CNC milling, grinding & polishing
- Mold-flow, hot-runner & DFM analysis
Have a part you need molded?
Send drawings or a part description. A senior molding engineer will review draft angles, wall thickness, and gate strategy and respond within 48 hours.
