Two 3D CMMs and SmartScope, inline.
Every batch validates against our ISO 9001 quality system before it ships — no separate QA round-trip, no delay.

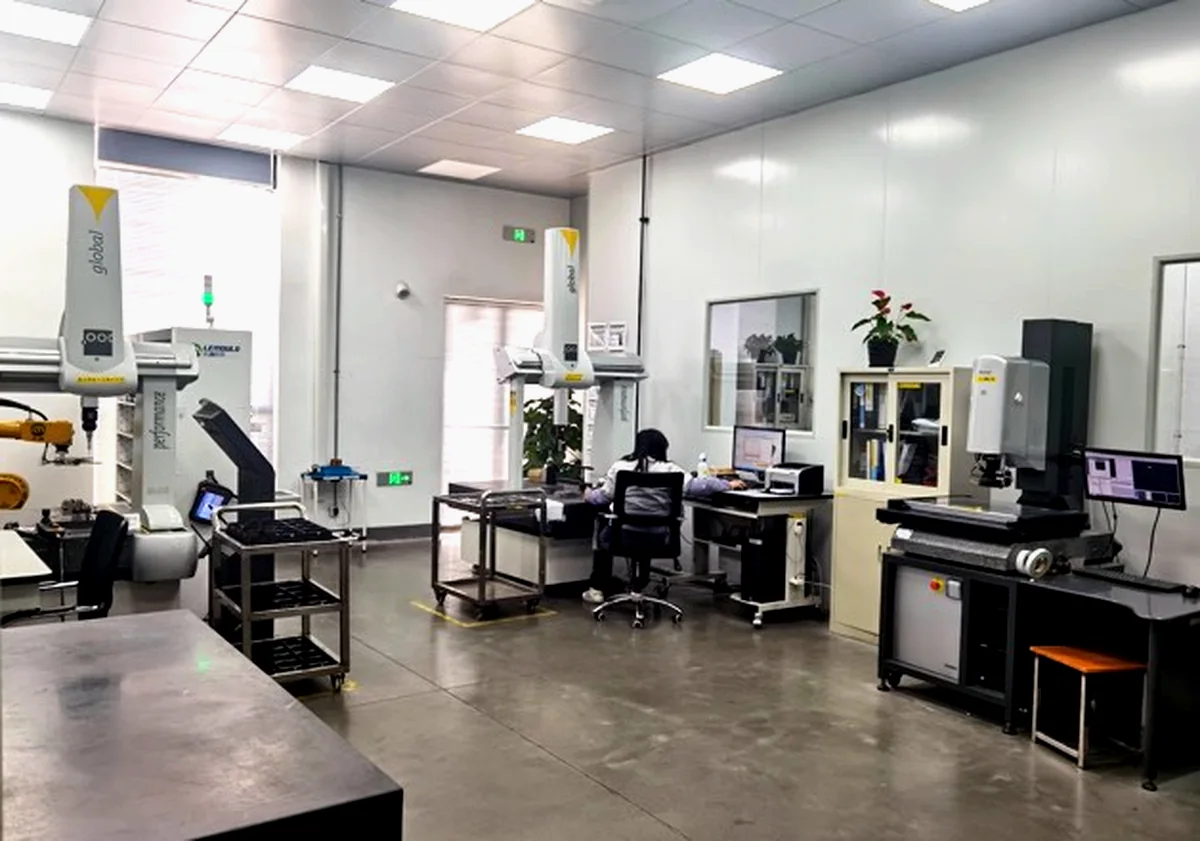

3D Coordinate Measuring Machines.
Two CMM CE-450AV units (450 × 450 × 150 mm range) plus a SmartScope multi-sensor system catch deviations down to single-micron resolution.
0.9 µm
+ L/350 measurement floor
450 mm³
450 × 450 × 150 volumetric envelope
23
CMMs, projectors, hardness testers, gauges
20.5 °C
Temperature-stabilized lab
Pick a nominal size and ISO fit class.
We'll show the upper and lower sizing limits and whether the tolerance band is comfortably above the CMM's measurement uncertainty floor.
50.013 mm
Upper dimensional cap limit
49.987 mm
Lower dimensional floor limit
Audited quality standards.
Independent audits cover our quality management system — certification is renewed on schedule.
ISO 9001:2015
Quality Management Systems Standard
3D CMM and optical metrology stations.
3D Coordinate Measuring Machine (CE-450AV)
Volumetric coordinate validation against drawing tolerances on every shipped batch
Accuracy: 450 × 450 × 150 mm range (Qty: 2)
SmartScope CNC hybrid Optical Video System
Multi-sensor high dimension tracing of plastic moldings & stamped contours
Accuracy: 1.8 + L/250 μm (Qty: 1)

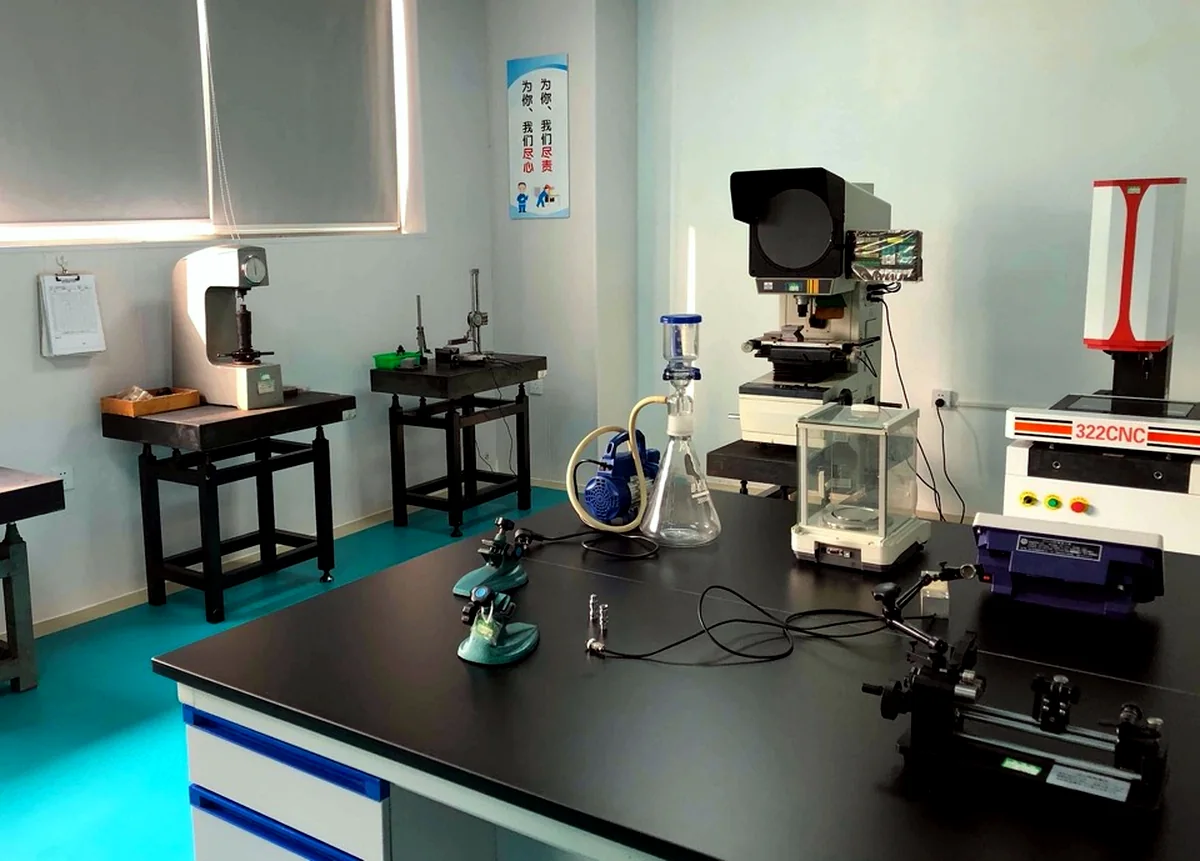

Object Profile Projector & Microscopes
Optical magnification and fine-detail trace overlay checks for axles & fasteners
Accuracy: Range: 100 x 50 mm (Qty: 2 Projectors)
Hardness Testers (HRC/HRV) & Micrometers
HRC Hardness Tester, HRV Measurer, Micrometer Calipers, High Gauges & salt spray tanks
Accuracy: HR-150A & HV-1000 Hardness Range
Equipment & machinery
Climate-controlled measurement lab
- 3D CMM ×2 (CE-450AV)
- SmartScope multi-sensor video
- Profile projectors
- Hardness & height gauges
Need a CMM-validated part?
Every PLAM part can ship with a CMM inspection report on critical dimensions. Tell us your inspection plan and we'll wire it into routing.
